Lubricated Rotary Screw Air Compressors
A rotary screw air compressor is a positive displacement compression system that includes a pair of matching helical screws. An oil-flooded rotary screw compressor includes a lubricant that fills the gap between the rotors, which creates an air-tight hydraulic seal and transfers mechanical energy between the two rotors. The air moves through the threads as the screws rotate, and the meshing screws force the air through the compressor.
QSI/QGV
Quincy’s premium QSI and QGV product line ranges from 40-400 Hp and is regarded as the most reliable family in the market.
Maximum Uptime, Minimum Disruptions
- Coolers designed for ambient temperatures up to 122°F (50°C)
- Airend bearings engineered for a life of 100K hours
- Market Leading 10 Year Warranty
Lowest Total Cost of Ownership
- Vertical draft cooling reduces the cost and complexity of ducting, when needed
- Quincy controller technology enables constant communication between machines, allowing them to work in harmony as a group rather than as individuals.
- A needle valve allows oil sampling during operation
Flexibility To Do It Your Way
- A huge array of pre-engineered options means that you can have the machine your way without the investment or lead time of a custom build.
- We can provide all kinds of attractive purchase options, including long term rental, leasing, financing and even providing the package as a service.
- We can support your maintenance goals, from supplying parts to becoming completely accountable for your system availability levels.
BADGERXE Xtreme Environment Variable Speed
- A unique variable speed compressor because it’s designed to be installed outdoors and in harsh environments.
- The integrated electrical panel cooling system with NEMA4 protection allows the BadgerXE to thrive in conditions where most other machines would fail.

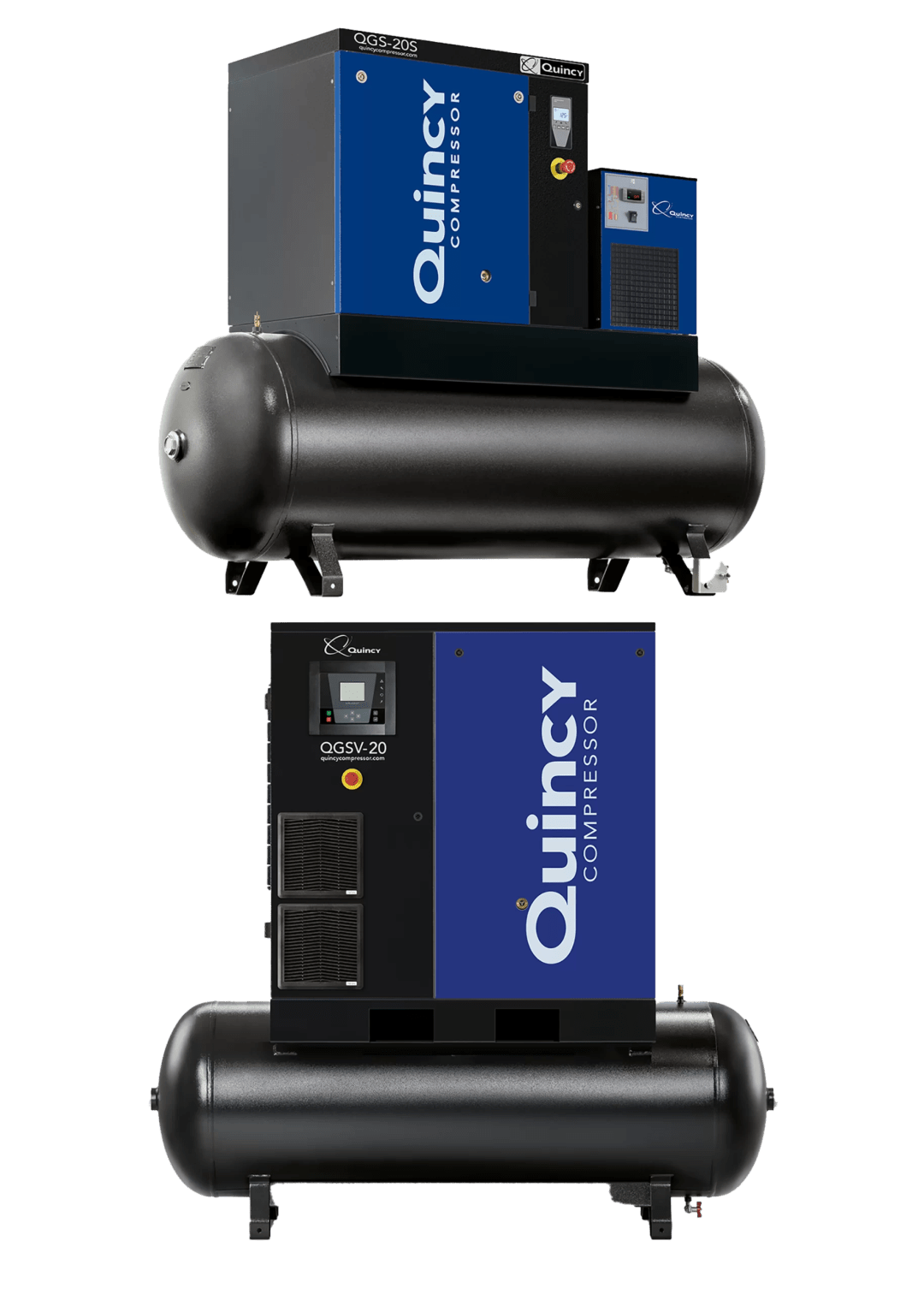

QGS/QGSV
The QGS product line includes 5-30 horsepower belt screw air compressor models that include a long-life V-belt drive, high–efficiency intake filter and a robust TEFC motor. The standard quiet enclosure is designed to reduce vibration and noise levels. The eight-thousand-hour premium synthetic fuel features a low oil carryover. An integrated dryer and tank mount option is also available.
The QGSV series of rotary screw variable speed compressors are available from 10 horsepower to 50 horsepower. QGSV units include direct drive transmission for energy savings & reduced maintenance cost. This unit includes options for tank mount and an integrated dryer configurations. Units are available at 175 PSI (QGSV 10 150PSI).
- 5-30 hp, Belt Drive
- 40-150 hp, Gear Drive
- 16-700 acfm, 125-150 psig
- 62-69 dBA
- Integrated dryer option
- 5-Year True Blue Warranty
QGD/QGDV
The QGD rotary air compressor line is specifically designed to provide reliable compression in the most challenging applications. The Airlogic 2 advanced control enables the compressor to operate with maximum efficiency. With a sound level as low as 66 dBA, you’re assured of quiet operation. The QGD is also designed for easy serviceability.
The Quincy QGDV series is a high-performance variable speed rotary screw compressor package that can be used in a wide range of applications. All QGDV units from 15 horsepower to 30 horsepower feature industry-leading efficiency and serviceability. The models can be configured as basic units or can be equipped with some basic options to fit your application best. All QGDV models have low sound levels, small footprints and the lowest total cost of ownership in the industry.
- 15-30 hp, Gear Drive
- 70.8-141.3 acfm @ 125 psig
- Airlogic2 advanced control
- Ease-of-maintenance design
- Industrial-grade enclosure
- 5-Year True Blue Warranty
- QGDV True Blue Extended Warranty Statement
Pressure Lubricated Reciprocating/Piston Air Compressors
A rotary screw air compressor is a positive displacement compression system that includes a pair of matching helical screws. An oil-flooded rotary screw compressor includes a lubricant that fills the gap between the rotors, which creates an air-tight hydraulic seal and transfers mechanical energy between the two rotors. The air moves through the threads as the screws rotate, and the meshing screws force the air through the compressor.
QR-25
Our premium, top-of-the-line pressure lubricated piston air compressor is the QR-25. It’s a heavy-duty compressor that is pressure lubricated in all critical areas and delivers up to 25 hp. Available in single- and two-stage versions, the QR-25 is designed to operate at slower speeds and is equipped with intake loaders that minimize work. The rugged cast iron construction ensures a long life expectancy, less downtime and easier maintenance. Other key features include loadless starting, a manually reversible oil pump and rebuildable components. Seen as the industry standard in piston compressor technology, the performance of Quincy’s QR-25 is legendary.
1-25 hp
3-95 acfm, 20-500 psig intermittent
Single & Two Stage
Cast iron full pressure lubricated
5-Year limited warranty
QP
The QP is a two-stage pressure lubricated air compressor featuring a working pressure of 175 PSI for your more challenging air compression applications. Key QP features include a cast iron crankcase, flywheel and cylinder, reliable positive displacement oil pump and high efficiency intercooler. The QP is available in a “standard” configuration Pro Unit, as well as a “fully loaded” Max Unit.
3 to 15 HP
175 PSI Working pressure
Oil filter and pressure gaug
Fully pressure lubricated
QT
Our two-stage splash lubricated QT piston air compressor models are designed to deliver higher volumes of air while also consuming less energy. The special valve design provides the highest possible volumetric efficiency and features super-strong stainless steel valves. The balanced counter-weighted crankshaft ensures smooth operation and fewer maintenance headaches. The cast iron construction also assures a long compressor lifespan. As with our QP line, the QT is available in Pro Unit and Max Unit options.
5-15 hp
17-206 acfm, 175 psig maximum
Two Stage
Cast iron splash lubricated
Climate Control
Our application specific air compressor models include climate control systems that are designed and engineered for efficient and effective climate control in all types of operating environments. The options include Simplex Splash Lubricated Tank-Mount models that include an ASME pressure relief valve, a pressure gauge, a manual shut-off at tank discharge and a manual tank drain. A Duplex Splash Lubricated Tank-Mount model with a Duplex Control Panel and optional dryer is also available
0.5-20hp
4-88 acfm, up to 100 psig service
Single & Two Stage
2 ppm carry over factory certified
Single Stage
Our stationary and portable single-stage piston air compressors are ideally suited for commercial compressed air applications and smaller DIY projects. Despite their small size, they feature a rugged cast iron construction that ensures maximum durability. Key product features include a cast iron cylinder and crankshaft, an aluminum head and a fully enclosed belt guard.
2 & 3.5 hp
7.1 to 12.4 acfm
110 to 135 psi
Single Stage
Air Treatment Equipment
Quincy Compressor air treatment and condensation management equipment is engineered to work specifically with our rotary screw and reciprocating compressors. Like any Quincy product, our air dryers, condensation management and other air filtration equipment has been designed to provide exceptional performance in all applications and is backed by an excellent warranty that guarantees years of trouble-free use. Keep reading to learn more, or Contact us for assistance.
Dryers
Quincy dryers are an essential tool for condensation management in a number of industrial applications. We manufacture and provide exclusive ongoing support for one of the best selections of refrigerated and desiccant dryers on the market today. Our refrigerated air dryers are available in cycling and non-cycling configurations.
For smaller footprint applications experiencing consistent loads, choose one of the QPNC series of non-cycling dryers. For maximum efficiency, QED dryers feature a three-stage heat exchange system with cold storage, allowing the unit to cycle on and off as necessary. Finally, the QRHT is a compact, high-temperature system designed to work with reciprocating compressors producing discharge temperatures up to 180°F.
Equipment in our desiccant dryer lineup — which includes the QHD, QHP, QBP and QMOD models — use our proprietary Q-SORB product to absorb moisture that can lead to operational problems in your compressors.
Cycling, non-cycling and high temperature refrigerated dryers
Heatless, heated purge and blower purge desiccant dryers
Air Filtration
To complement Quincy compressors, we offer a large selection of air filtration systems designed to work with our products. Standard filters include particulate, coalescer and absorber-type products, all of which feature push-to-fit design, multi-wrap element construction and a 10-year warranty on aluminum or steel housing components.
Quincy high pressure filters are built for heavy-duty use. Their unique design features a coalescer to remove liquid aerosols and an activated carbon absorber to reduce odors and vapors. To accommodate many different potential applications, high pressure air filtration systems are available with pipe sizes ranging from ¼” to 2” in diameter.
Use Quincy mist eliminators to remove oil, particulates and water from compressed air with exceptional efficiency. Our products feature a unique double element design that uses a combination of impaction, interception and Brownian movement to remove 100% of particles 3 microns or larger and 99.5% particles as small as 0.01 micron. Rounding out our selection of air filtration equipment, we also offer high-quality, specially blended borosilicate glass microfiber elements compatible with all major manufacturers’ products.
Standard filters
High pressure filter
Mist eliminators
Preferred elements
Condensate Management
Quincy condensate management products provide a number of important air treatment functions. We manufacture no-loss pneumatic (QDD) and electronic (Q-MAT) drains that offer reliably efficient performance, as well as electronic timers for coordinating industrial processes. We also offer the QCS series of condensate purifiers, available in up to 1600 CFM configurations to accommodate multiple compressor units. Features include a carbon-free filter media that removes all compressor fluids, including polyglycols. To simplify maintenance, filter cartridges are removable, allowing for easy disposal of contaminated condensate.
Drains
Condensate Purifiers
Oil Free Compressors
What is an Oil-Free Air Compressor?
Oil-free air compressors help manufacturers create products with high air quality throughout the manufacturing process. This equipment typically has no mechanical contact inside the compression chamber, or it uses an alternate material like water or Teflon coating to protect the internal mechanisms without depending on oil lubrication. Oil-free air compressors can provide air purity, environmental benefits and significant cost savings for manufacturers.
QOF 2-30 hp Oil-Free Scroll Compressors
Class Zero represents the best air quality possible. In critical environments, it is essential that the compressed air is 100% oil-free. Contamination by even the smallest quantities of oil can cause costly production down time and product spoilage, resulting in product recalls and loss of reputation. The new Quincy QOF 2-30 oil-free scroll compressors meet the Class Zero standard and also provide top class performance, premium efficiency and quality. Outstanding reliability, low maintenance and operating costs make oil-free compressors a sound investment.
WIS 20-75hp Oil-Free Water Injected Screw Compressors
WISAIR’s water injected screw offers the most innovative oil free technology and improved energy efficiency thanks to the superior cooling capability of water. Removing the wasted energy that heat represents gives more air per kW of power. The low temperatures of the compressed air reduces the stress on components ensuring long life. the WISAIR range is certified to ISO 8573-1 Class 0.
At the heart of the wisAIR, there is the water-injected screw airend producing highly efficient near isothermal compression. The polymer ceramic rotors with their optimized rotor profile are supported by water-lubricated bearings, ensuring that no oil contaminates the compression element, thereby producing pure oil-free air. The wisAIR comes standard with an advanced graphic controller. Configurations include air and water-cooled versions, multiple pressures and an optional integrated dryer.
QOFT 20-75V and QOF 75-400 Oil Free Compressors
The Quincy QOFT & QOF Series rotary tooth and screw compressors deliver 100% oil-free air with Industry leading reliability. Ideal applications include food and beverage processing, pharmaceutical manufacturing, chemical and petrochemical processing, fermentation, wastewater treatment, pneumatic conveying, non-woven textile manufacturing and many more.
The Quincy QOFT and QOF Series rotary screw compressors delivers advanced controls and networking capabilities along with a robust design that’s easy to service.
Vacuum Pumps
Associated Compressor & Equipment is your headquarters for high-quality, reliable air compressor vacuum pump units that are the product of over 50 years of unrivaled industry expertise. Our supplier’s vacuum pumps are used by companies across the United States and around the world due to their uncompromising reliable and unbeatable performance. They’re also backed by superior 24-hour service and support from our extensive worldwide distributor network. There are various Quincy vacuum pump models to choose from, ensuring you’ll be able to find the right one for your applications.
QSV
The QSV focuses on delivering the exact performance you demand, at the minimum possible life cycle cost. Ideal for applications where you need to maintain a set vacuum level (a set point).
7.5-125 hp
Variable Speed Drive
240-3023 ACFM
Air or water cooled
QCV
The new range based on Quincy Compressor’s QCV – Dry Claw technology features an innovative design which creates a new benchmark in the claw pump market. The simplicity, robustness, efficiency and contaminant handling capability of these pumps make them the smart choice for your application. Built to the exacting standards and quality demanded by out customers, the new dry claw pump provides you with a trouble-free and cost-effective solution to meet your needs.
QLR
Liquid ring vacuum has always been and will always be one of the best technologies for extreme vapor loads. Quincy liquid ring pumps are ideal for pimping wet or dry gasses with a high tolerance for liquid carryover, especially on condensable processes such as distillation, drying and evaporator duties. Available in material options to suit demanding processes, and available in either single or dual stage design – we have a solution for all applications
QV
The QV series consists of 13 high-performing vacuum pump compressor models that can produce enough volumetric capacity for even the most challenging applications. These stand-alone systems are also portable, enabling you to easily move them around your facility or jobsite as needed. You can choose a 2 hp vacuum pump or one that can produce up to 40 hp. Key QV features include a multistage separation system, powerful and dependable direct-drive NEMA motor — an optional TEFC motor is also available — and integral inlet check valve.
1.5-10 hp, Direct Drive
19-180 acfm
All-purpose, rotary vane vacuum pump
QVMS
The QVMS is an air-cooled direct-drive vacuum air compressor pump with a 2-10 hp and 8-378 scfm capacity. Specifically designed and engineered for medical vacuum use, the QVMS can meet the requirements of high-demand hospital applications. The QVMS is also easy to install and compact enough to fit through a standard doorway. The one-side access simplifies the preventive maintenance process. The Quincy QV vacuum pump serves as the driving force behind the QVMS. Other features include a multistage demister/separator, gas ballast, anti-suck valves and a robust TEFC motor. The Quincy QVMS is fully NFPA 99 compliant.
2-10 hp, Direct Drive
8-378 scfm
NFPA 99 compliant vacuum pump
Multi-Stage Compressors
Reciprocating/piston compressors use a cylinder to force air into a chamber, where it is compressed. The simplest compressor designs feature a single cylinder/chamber arrangement. While straightforward, this setup is limited in its efficiency and capacity for delivering high volumes of pressurized air.
That’s where multi-stage compressors come in. By increasing the number of cylinder stages, these machines work more effectively and can handle more tools at once.
How Multi-stage Compressors Work
Multi-stage compressors feature a series of cylinders, each of a different diameter. Between each compression stage, the air passes through a heat exchanger, where it is cooled. Cooling the air reduces the amount of work necessary to compress it further.
In a two-stage compressor, air is then forced into an additional chamber where it is pressurized to the required extent. In a three-stage compressor, an additional cycle of compression and cooling occurs before this.
Benefits of Multi-stage Compression
Both single and multi-stage compressors have their benefits. The right one for your application will depend on a number of factors. Specific advantages of a three- or two-stage compressor design include:
- Improved efficiency. Two-stage compressors perform less work to compress air to a given pressure, which means your operating costs are lower.
- Better reliability. The intercooling stage of two-stage compression creates less chance of overheating, which in turn means more uptime and better productivity.
- Less moisture buildup. Cooler air has a lower moisture content. Moisture in compressed air can lead to equipment failure and premature wear. Using a two- or three-stage compressor can potentially save you from having to purchase a separate air dryer.
- Smaller footprint. For heavy-duty applications, multi-stage compressors deliver greater air pressure (PSI) at higher capacities (CFM) than single-stage machines of a comparable size.
- Few maintenance requirements. Thanks to smaller components and cooler temperatures, wearable components don’t wear out as quickly. As a result, recommended service intervals are longer.
Applications
Clearly there are benefits to selecting a multi-stage machine; however, their higher cost means they are not necessarily the right choice for every application. Generally speaking, single-stage compressors are best for light-duty, intermittent use applications, in which pressure requirements don’t exceed 100 PSIG. Two- or three-stage compressors, on the other hand, offer better value and reliability for continuous use applications, such as auto repair and manufacturing.
Multi-stage Machines From Quincy Compressor
Quincy Compressor has been a leading compressor manufacturer for nearly 100 years. We carry a complete range of products, including two- and three-stage air compressors designed for heavy-duty industrial use. Our products incorporate advanced technology to improve efficiency, reduce noise and keep maintenance requirements to a minimum. The best warranty programs in the business back all of our products, and we offer extended coverage on certain components for 10 years or more.
The flagship product, the QR-25, is available in a 5 HP, 2-stage air compressor configuration. Associated Compressor & Equipment also sells rotary screw and three-stage reciprocating machines. To learn more, Contact us.
Natural Gas Compressors
A natural gas compressor increases the pressure of a gas by reducing its volume. The natural gas enters the cylinder through the intake valves, where it is compressed and forced out through discharge valves. A gas air compressor is one form of natural gas compressor that is used in a wide range of industrial applications where either high pressure or lower volumes of gas are required. Examples include:
- Petroleum refineries, natural gas processing plants and chemical plants: Used for the compression of intermediate and end-product gases
- Industrial manufacturing and building: Provides compressed air that powers various pneumatic tools and equipment
- Pipelines: Transporting natural gas from the production site to the end user
QRNG Reciprocating Gas Compressor
A reciprocating gas compressor uses crankshaft-driven pistons to provide compression. The thrust is provided by a positive displacement pump that moves the gas through the system and enhances the gas’s pressure and density. Benefits of reciprocating gas compressors include their ability to produce high power and high pressure compressed gas, as well as the absence of an oil carryover problem. Reciprocating compressors also generally require a lower initial investment than other compressor types.
2-34 hp
Single & Two-Stage
400 psig max discharge
Quincy Compressor: The Leading Gas Air Compressor Company
As an experienced and innovative gas compressor manufacturer and supplier, Quincy Compressor is your best choice for reliable, high-performing reciprocating and rotary gas compressor models. Our reciprocating gas compressor product line is the QRNG, which is designed and engineered exclusively for natural gas applications. Nine QRNG models are available, including single-stage and two-stage versions that provide cost-effective gas compression, fast and easy maintenance and heavy-duty cast iron construction.
Our rotary screw options include the QSG line featuring a triplex bearing arrangement, gear-driven lubricant pump and a replaceable mechanical seal. The large diameter, slow-turning rotors are designed to maximize compression efficiency. And with a life expectancy of 130 thousand hours, the QSG is built to last longer than most competing compressors on the market.
Contact us to learn more about our natural gas compressor solutions, or find one of the authorized packages to evaluate your needs.
Keep your reciprocating natural gas compressor running smoothly with proper parts & service.
